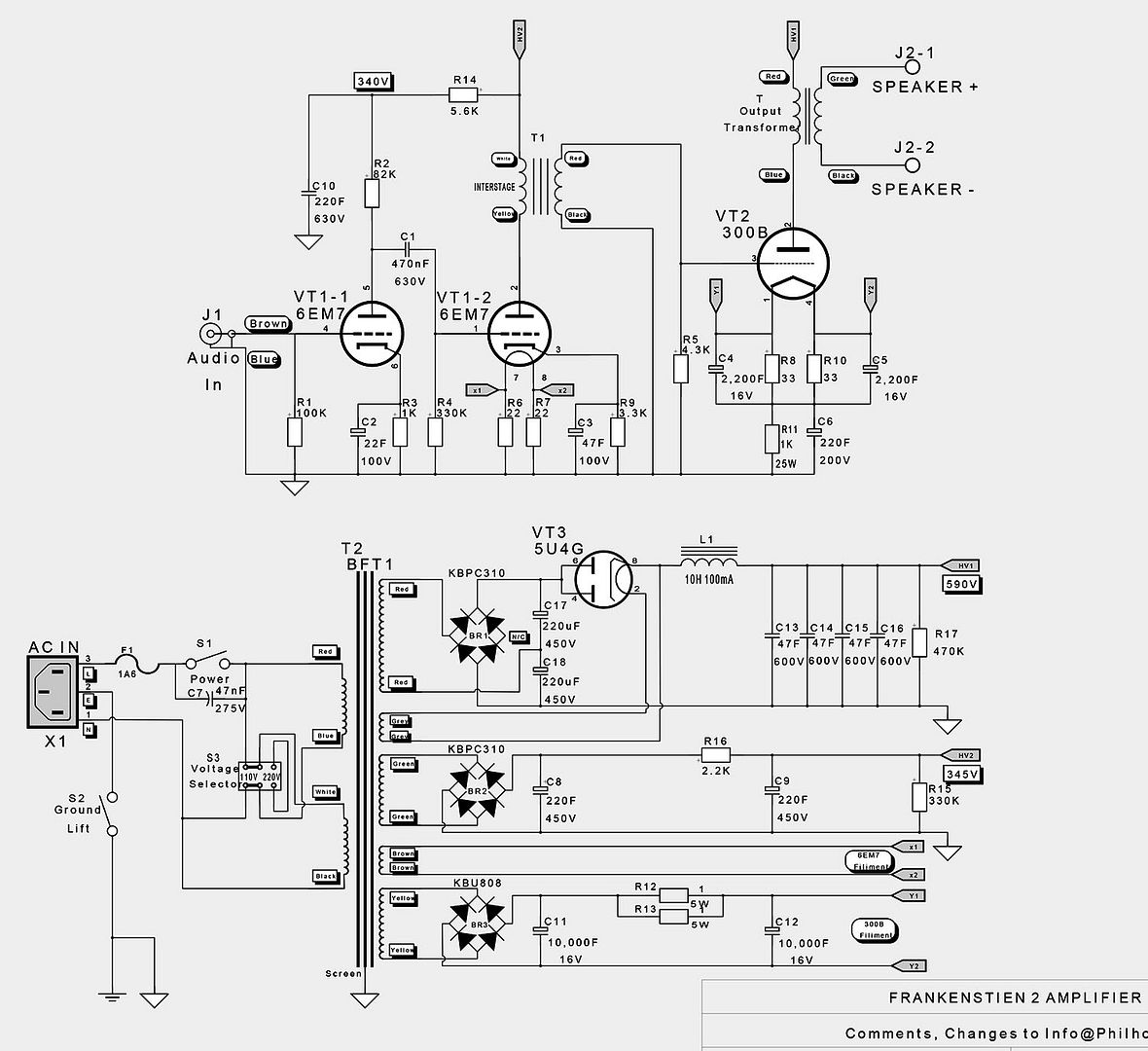

Coincident Frankenstein II schematic diagram...

72.208.143.169

This Post Has Been Edited by the Author

...is right here and at the link. It is NOT copyrighted and is NOT a product of Coincident Speaker Technology or Israel Blume.
Several caps are marked 'F' instead of 'uF', and C10 (upper-left) is 2.2uF and not 220 uF. (Mr. Blume told me that cap was a cathode bypass.)
----------
Tin-eared audiofool, large-scale-Classical music lover, and damned-amateur fotografer.
William Bruce Cameron: "...not everything that can be counted counts, and not everything that counts can be counted."
http://s89.photobucket.com/user/jeffreybehr/media/Coincident (Open in New Window)

Edits: 03/20/14 03/21/14
