• Re: Chill-amp II page - Tweekeng 11:43:08 02/20/06 (1)
  In Reply to: Chill-amp II page posted by Fedde Bouwman on February 19, 2006 at 11:04:40:



  That is nice somple design (I might have to build one myself) but I have to question your decision to go with two tramsformers because you said "The supply makes use of two transformer per channel. This way, less diodes are necessary."

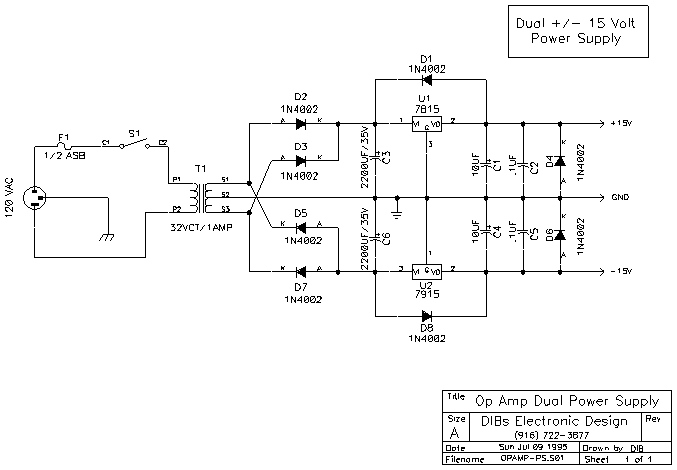

  But your design uses four diodes. As you can see from the attached schematic a basic split power supply only uses four diodes and one center tapped transformer to get the same +/- voltages.

  BTW: That is just the first schematic I found on the net, so any mistakes or descrepencies are not my doing.




  ---

  • here is a little better schematic - Tweekeng 12:04:09 02/20/06 (0)
    In Reply to: Re: Chill-amp II page posted by Tweekeng on February 20, 2006 at 11:43:08:



    Showes the transformer too



    ---
